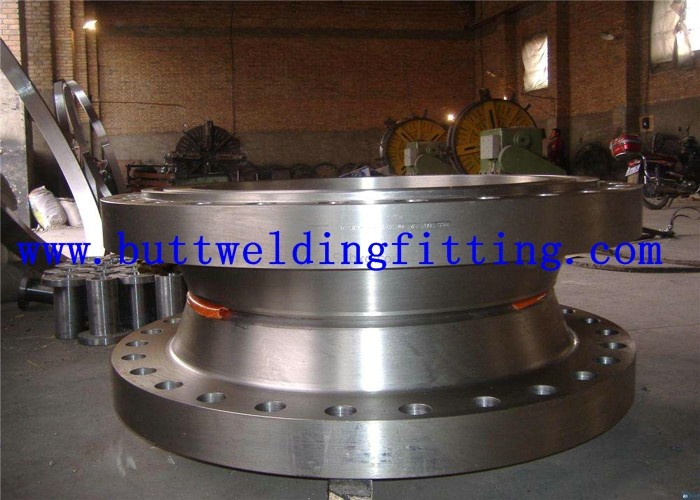

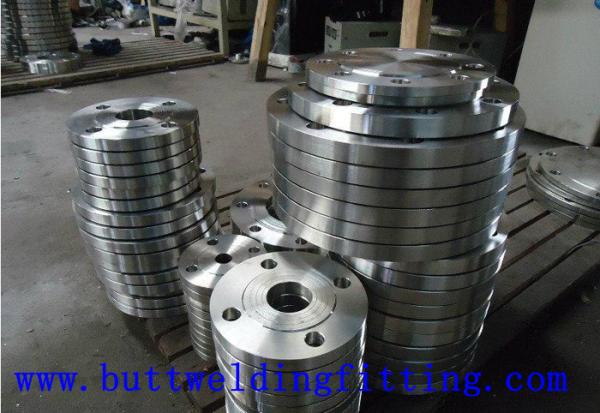

Pipe Fittings Carbon Steel Flanges / Slip On Flange Welding Size 1-60 Inch

  • 1
  • 2
  • 3

Brand Name : TOBO

Model Number : Flange

Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin : China

MOQ : 1pc

Price : USD negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3,000pcs per month

Delivery Time : 10-100 workdays

Packaging Details : Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc

Size : 1-60inch

DN : 15-1500

Material Grrade : A105 Cabon steel

Standard : DIN,EN,ASTM,BS,JIS,GB,etc.

Type : A105 Cabon steel

Contact Now

flangeType carbon steel flange WN SO BL JIN ECT
Standard ASME/ANSI B16.5
Size 1/2’’~60’’
Pressure Rate 150lb to 2500lb
Manufacturing process Push, Press, Forge, Cast, etc.
Material Carbon steel, stainless steel
Carbon steel ASTM A 105, ASTM A 181
Allloy steel flange

ASTM A182 F5; F11;F22;F91;F51

ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
Stainless Steel flange

ASTM A182 F304/304H/304L

ASTM A182 F316/316H/316L

ASTM A182 F321/321H

ASTM A182 F347/347H
Nickel Alloys Flanges Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys Flange Copper, Brass & Gunmetal
Manufacture Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Description:

Steel Flange, Compact Flanges 1/2Inch - 48Inch And 150# To 2500# With A182 / F51 / Inconel 625.

Compact Flanges (RCF ), NORSOK L005 , A182 F316/316L, F51, F53, F55, Inconel 625, Incoloy 825, A105, A350 LF2, LF52-70

  • RCF NORSOK NCF5 Series

Based on NORSOK L005 code, suitable for critical sealing applications with high thermal expansion, cyclic loading such as Risers, single point mooring systems, manifolds, X-Trees, subsea pipelines, heat exchangers and a multitude of process piping systems.

  • RCF Advantage
    • Space saving
      • Weight saving up to 70%~80% than ANSI flanges
    • Double Independent Seals make it safer
      • Positive sealing method
    • Integrated sealing system (both inside and outside)
      • Larger range in design temperature and pressure
  • RCF Working Principle
    • The RCF compact flange design principle is that the flange face includes two independent seals. The first seal is created by application of seal seating stress at the flange heel. The main seal is the IX seal ring. The seal ring force is provided by the elastic stored energy in the stressed seal ring. Any heel leakage will give internal pressure acting on the seal ring inside intensifying the sealing action.
ODM& OEM SERVICES

Service
Drawings or samples processing/OEM/ODM service provided

Produce Process
Drawings→ mould making → pre-forging →rough machining

or finish machining →surface treatment →product checking

→ packing →delive ry

Forging Material
Carbon Steel, Alloy steel,Stainless steel

Standard
ISO, GB, ASTM, DIN, JIS

Produce Equipment
Friction Screw Press Series, CNC Lathe, Machining Center

(Vertical Spindles), CNC Milling Machine, Bench Drilling

Machine, Heat Treatment Equipments and so on.

Surface treatment
Heat treatment, Polishing, shot blasting,

Painting, Electro-plating, Chemical Plating,

Inspection

Equipments
Metallurgical analysis , Tensile strength tester , Hardness

tester, Altimeter, Scale Micrometer, pressure tester, etc.

Delivery
Sample s are sent by express

Large quantity products delivered to customer by sea

or according to your request


Pipe Fittings Carbon Steel Flanges / Slip On Flange Welding Size 1-60 Inch
